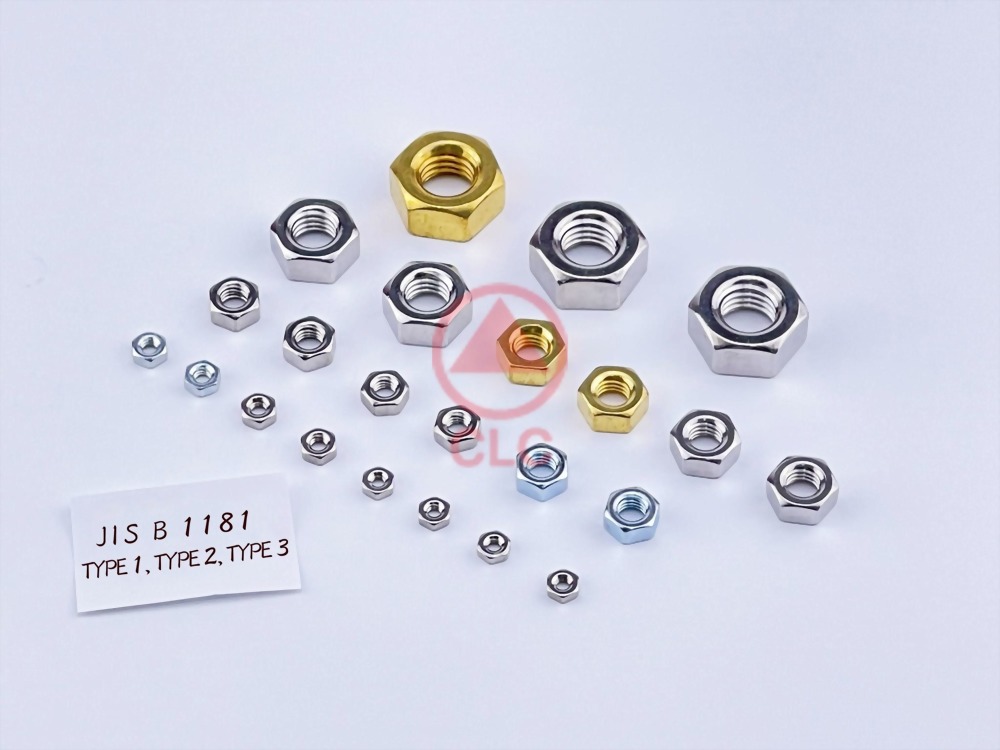

JIS B 1181 TYPE 1, TYPE 2, TYPE 3
|
d |
P |
S |
m |
m1 |
||||
|
MIN |
MAX |
MIN |
MAX |
MIN |
MAX |
|||
|
M2 |
0.4 |
3.80 |
4.00 |
1.35 |
1.60 |
0.95 |
1.20 |
|
|
M2.5 |
0.45 |
4.80 |
5.00 |
1.75 |
2.00 |
1.35 |
1.60 |
|
|
M2.6 |
0.45 |
4.80 |
5.00 |
1.75 |
2.00 |
1.35 |
1.60 |
|
|
M3 |
0.5 |
5.30 |
5.50 |
2.15 |
2.40 |
1.55 |
1.80 |
|
|
M4 |
0.7 |
6.80 |
7.00 |
2.90 |
3.20 |
2.15 |
2.40 |
|
|
M5 |
0.8 |
7.80 |
8.00 |
3.70 |
4.00 |
2.90 |
3.20 |
|
|
M6 |
1.0 |
9.80 |
10.00 |
4.70 |
5.00 |
3.30 |
3.60 |
|
|
M8 |
1.25 |
12.75 |
13.00 |
6.14 |
6.50 |
4.70 |
5.00 |
|
