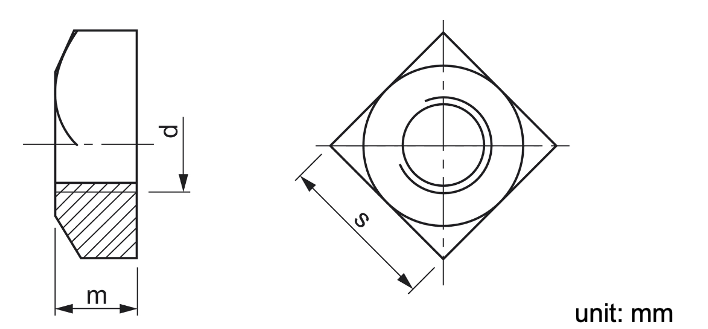

JIS B 1163 Square Nuts



d

P

s

m

MIN

MAX

MIN

MAX

M3

0.5

5.20

5.50

2.15

2.40

M4

0.7

6.80

7.00

2.90

3.20

M5

0.8

7.64

8.00

3.52

4.00

M6

1.0

9.64

10.00

4.52

5.00

M8

1.25

12.57

13.00

5.92

6.50
