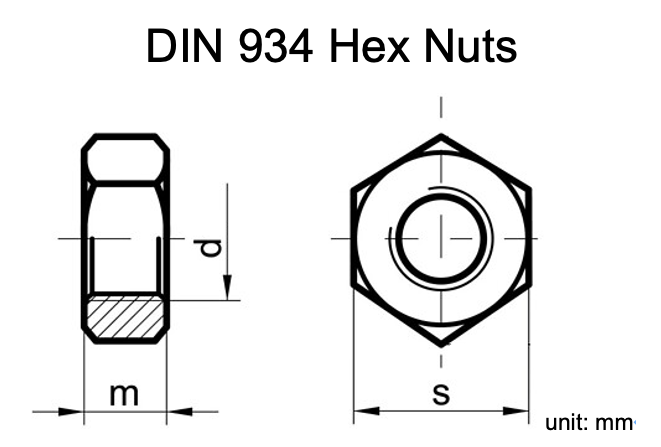

DIN 934 Hex Nuts
|
d |
P |
S |
m |
|||
|
MIN |
MAX |
MIN |
MAX |
|||
|
M1.6 |
0.35 |
3.02 |
3.20 |
1.05 |
1.30 |
|
|
ㄌM2 |
0.4 |
3.82 |
4.00 |
1.35 |
1.60 |
|
|
M2.5 |
0.45 |
4.82 |
5.00 |
1.75 |
2.00 |
|
|
M3 |
0.5 |
5.32 |
5.50 |
2.15 |
2.40 |
|
|
M3.5 |
0.6 |
5.62 |
6.00 |
2.55 |
2.80 |
|
|
M4 |
0.7 |
6.78 |
7.00 |
2.90 |
3.20 |
|
|
M5 |
0.8 |
7.78 |
8.00 |
3.70 |
4.00 |
|
|
M6 |
1.0 |
9.78 |
10.00 |
4.70 |
5.00 |
|
|
M7 |
1.0 |
10.73 |
11.00 |
5.20 |
5.50 |
|
|
M8 |
1.25 |
12.73 |
13.00 |
6.14 |
6.50 |
|
