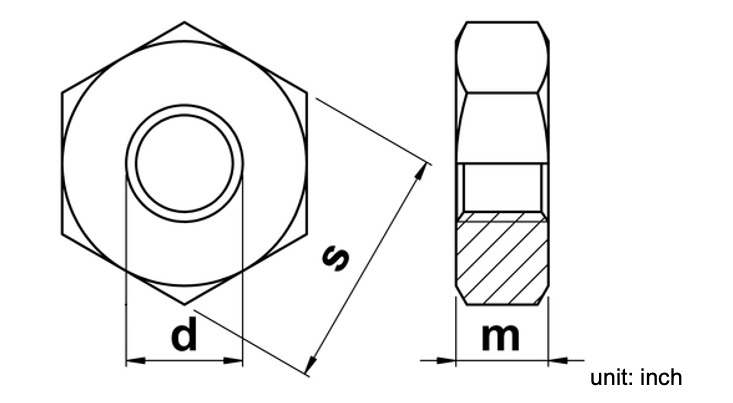

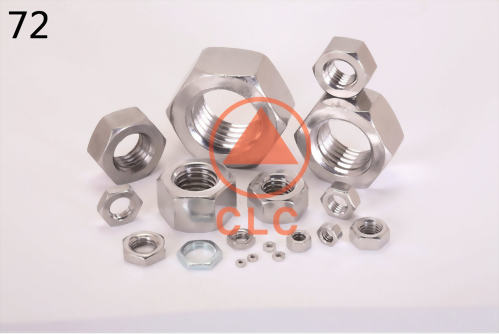

ASME B18.2.2 Hex Machine Screw Nuts
|
d |
UNC |
UNF |
S |
m |
||
|
MIN |
MAX |
MIN |
MAX |
|||
|
#2 |
56 |
64 |
0.180 |
0.188 |
0.057 |
0.066 |
|
#3 |
48 |
56 |
0.180 |
0.188 |
0.057 |
0.066 |
|
#4 |
40 |
48 |
0.241 |
0.250 |
0.087 |
0.098 |
|
#5 |
40 |
44 |
0.302 |
0.312 |
0.102 |
0.114 |
|
#6 |
32 |
40 |
0.302 |
0.312 |
0.102 |
0.114 |
|
#8 |
32 |
36 |
0.332 |
0.344 |
0.117 |
0.130 |
|
#10 |
24 |
32 |
0.362 |
0.375 |
0.117 |
0.130 |
|
#12 |
24 |
28 |
0.423 |
0.438 |
0.148 |
0.161 |
|
1/4 |
20 |
28 |
0.423 |
0.438 |
0.178 |
0.193 |
|
5/16 |
18 |
24 |
0.545 |
0.562 |
0.208 |
0.225 |
