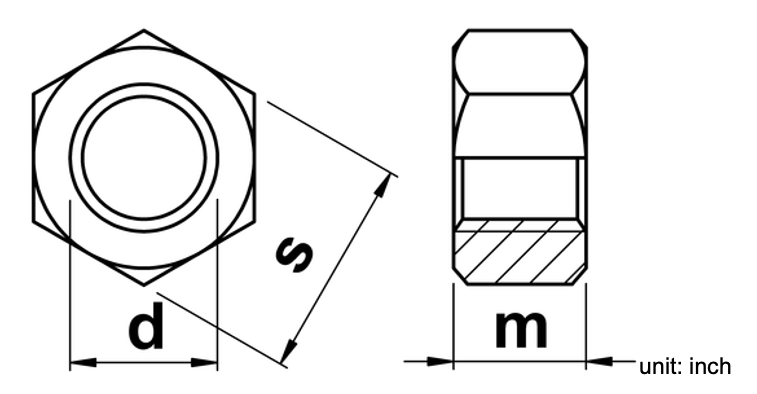

ASME B18.2.2 (Finished) Hex Nuts



d

UNC

UNF

S

m

MIN

MAX

MIN

MAX

1/4

20

28

0.428

0.438

0.212

0.226

5/16

18

24

0.489

0.500

0.258

0.273

3/8

16

24

0.551

0.563

0.320

0.337

1/2

13

20

0.736

0.750

0.427

0.448
