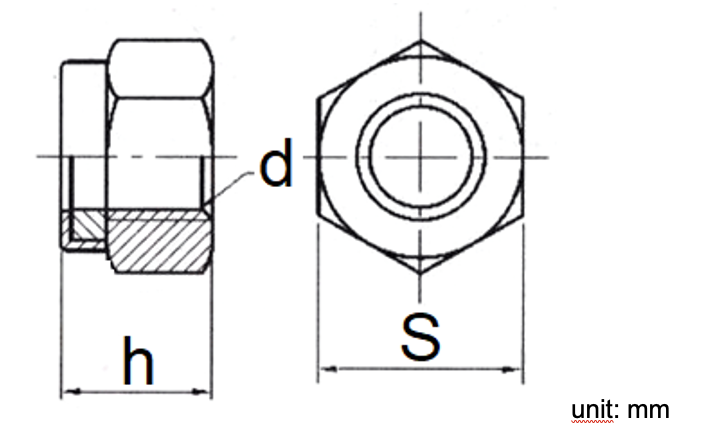

(49) BRASS NYLON INSERT NUT、DIN985/982、ISO7040
|
d |
P |
S |
m |
|||
|
MIN |
MAX |
MIN |
MAX |
|||
|
M3 |
0.5 |
5.32 |
5.50 |
4.02 |
4.50 |
|
|
M4 |
0.7 |
6.78 |
7.00 |
5.52 |
6.00 |
|
|
M5 |
0.8 |
7.78 |
8.00 |
6.22 |
6.80 |
|
|
M6 |
1.0 |
9.78 |
10.00 |
7.42 |
8.00 |
|
|
M8 |
1.25 |
12.73 |
13.00 |
8.92 |
9.50 |
|
|
M10 |
1.5 |
15.73 |
16.00 |
11.12 |
11.90 |
|
|
M12 |
1.75 |
17.73 |
18.00 |
14.20 |
14.90 |
|
